Overall Equipment Effectiveness (OEE): Availability, Performance and Quality in Real Manufacturing

OEE = Availability × Performance × Quality

That simplicity is part of its appeal.

It is also why OEE can be misunderstood.

A production team can calculate an OEE percentage to one decimal place while still having little understanding of why useful production time is being lost.

The number itself does not repair a failed bearing.

It does not explain why a machine is running below its normal rate.

It does not tell us why parts are being rejected.

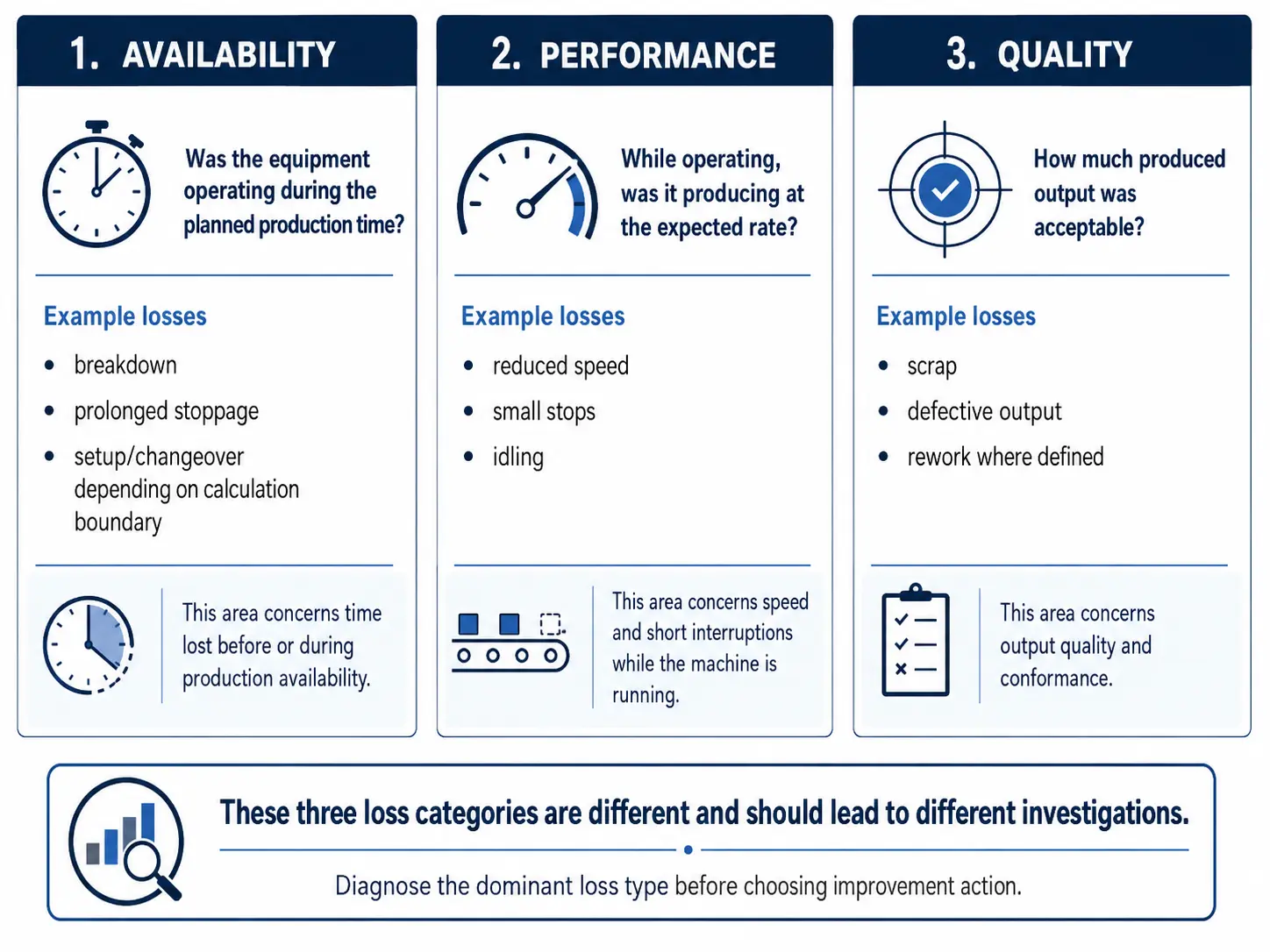

The value of OEE comes from breaking manufacturing loss into three different questions:

• Was the equipment available when production was planned?
• When it was operating, was it producing at the expected rate?
• Of what it produced, how much was acceptable?

Those are the Availability, Performance and Quality components of OEE.

ISO 22400 provides an industry-neutral framework for manufacturing operations KPIs. The currently published ISO 22400-2:2014 defines selected KPIs through formulas and their corresponding elements, while ISO is now working on a second edition.

The important engineering lesson is that OEE should not become another factory score.

It should help expose where productive manufacturing opportunity is disappearing.

What OEE actually measures

A useful way to understand OEE is to begin with time.

Imagine that a production machine has been scheduled to manufacture components during a defined period.

That gives us a production opportunity: planned production time.

Some of that opportunity may disappear because the machine is stopped.

That becomes an Availability loss.

During the remaining operating time, the machine may run slower than the defined ideal production rate or experience small stops.

Those become Performance losses.

Finally, some produced units may be defective.

Those become Quality losses.

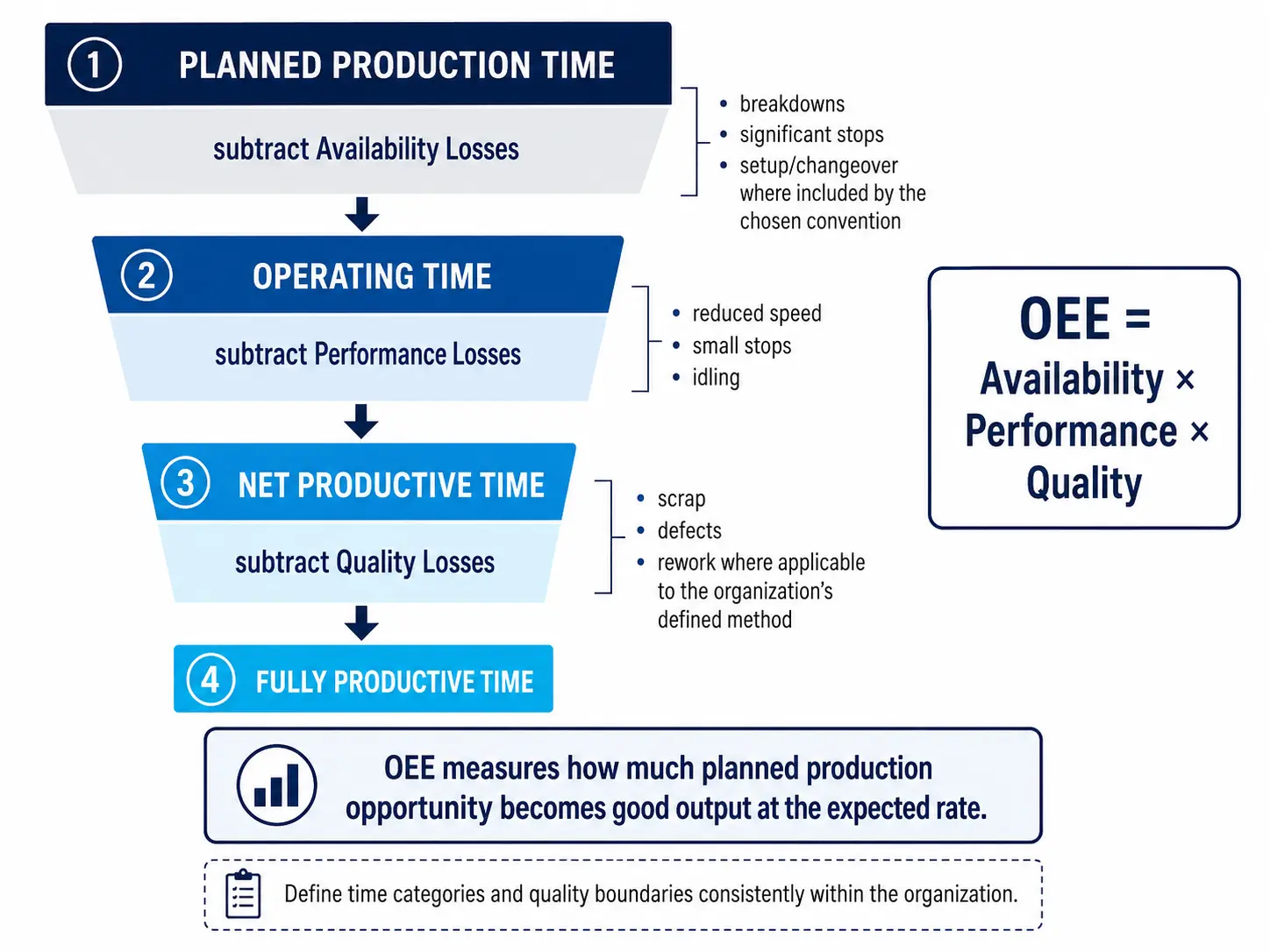

Conceptually:

• Planned Production Time
• ↓ Availability losses
• Operating Time
• ↓ Performance losses
• Net productive opportunity
• ↓ Quality losses
• Fully productive output

This is the real meaning behind the multiplication.

NIST manufacturing material likewise describes OEE as the product of Availability, Performance Rate and Quality Rate, linking it to the elimination of downtime, speed and quality losses.

Availability: was the machine actually available for production?

A common form is:

“Availability = Operating Time / Planned Production Time”

Suppose a machine is scheduled for 480 minutes.

During that period, it experiences 48 minutes of counted downtime.

Operating time becomes: 480 − 48 = 432 minutes.

Availability: 432 / 480 = 90%.

The arithmetic is easy.

The harder question is:

“What exactly counts as planned production time and what counts as downtime?”

That is where inconsistent OEE systems begin.

Time definitions matter

Imagine two factories operating identical machines.

Factory A excludes planned meal breaks from planned production time.

Factory B includes them and records the stops against Availability.

Even if the machines behave identically, their reported OEE values can differ.

The same issue can arise with:

• Planned maintenance
• Setup
• Changeovers
• No-production periods
• Material shortages

There are established conventions and company-specific implementations, but whichever method is adopted must be defined consistently.

Otherwise teams end up comparing calculations built on different boundaries.

A useful rule is:

“OEE is only as consistent as the definitions underneath it.”

Availability is not only about catastrophic breakdown

When engineers hear “downtime,” they often think of:

• Failed motor
• Broken belt
• Damaged bearing
• Electrical breakdown

These certainly affect Availability.

But machines also stop because of:

• Tooling problems
• Setup
• Waiting for intervention
• Blocked material
• Sensor faults
• Process problems

Whether particular categories belong in a given OEE boundary should be explicitly defined.

The deeper objective is not merely to create a downtime total.

It is to understand why planned production was unavailable.

Performance: was the machine producing at the expected rate?

Availability can be high while production remains disappointing.

A machine may operate for almost the whole shift but run below the expected rate.

Performance captures that second type of loss.

A commonly used relationship is:

“Performance = Ideal Cycle Time × Total Count / Operating Time”

Suppose: ideal cycle time = 0.5 min/unit; total production = 820 units; operating time = 432 min.

Ideal time required for that output: 0.5 × 820 = 410 minutes.

Performance: 410 / 432 ≈ 94.9%.

The machine was operating for 432 minutes, but the achieved production rate represented about 410 minutes of ideal-rate production.

The missing production opportunity is Performance loss.

Performance losses can hide inside a running machine

This is one reason OEE is useful.

A machine can display:

“RUNNING”

while still losing capacity.

Examples include:

• Speed reductions
• Short interruptions
• Idling
• Repeated resets
• Small material delays
• Process instability

Imagine a production cell stopping for only 30 seconds at a time.

No individual stop looks serious.

But if it happens repeatedly across a shift, the accumulated effect can become significant.

This distinguishes:

• Equipment operating
• Equipment producing effectively

Ideal cycle time deserves careful engineering judgement

Performance depends heavily on the defined ideal rate.

What should “ideal” mean?

Possibilities may include:

• Established standard cycle
• Validated best demonstrated cycle
• Designed process rate
• Product-specific target

What should not happen is adjusting the denominator simply to produce a more attractive Performance score.

If the target is unrealistically fast, Performance is permanently depressed.

If it is artificially slow, Performance can appear excellent while real capacity remains unused.

This makes the definition of ideal cycle time one of the most important parts of a credible OEE system.

Different products may also require different cycle standards.

Comparing rate without product context can therefore distort the analysis.

Quality: how much output was useful?

The Quality component commonly relates good output to total output:

“Quality = Good Count / Total Count”

Using our example: total count = 820; good count = 800.

Quality: 800 / 820 ≈ 97.6%.

Twenty units failed to become good output during the original production process.

This matters because the machine still consumed:

• Time
• Energy
• Material
• Tooling
• Labour

to produce them.

The manufacturing system therefore did work without creating acceptable output.

Rework needs a clear definition

Suppose a component fails inspection but can be reworked later.

Was it a good unit?

Eventually, perhaps.

But the initial process generated additional resource consumption.

Different KPI systems may handle rework according to their defined production rules.

The important issue for OEE is consistency and transparency.

Teams should know exactly what:

“good count”

means.

If the definition changes from shift to shift, the Quality component stops being trustworthy.

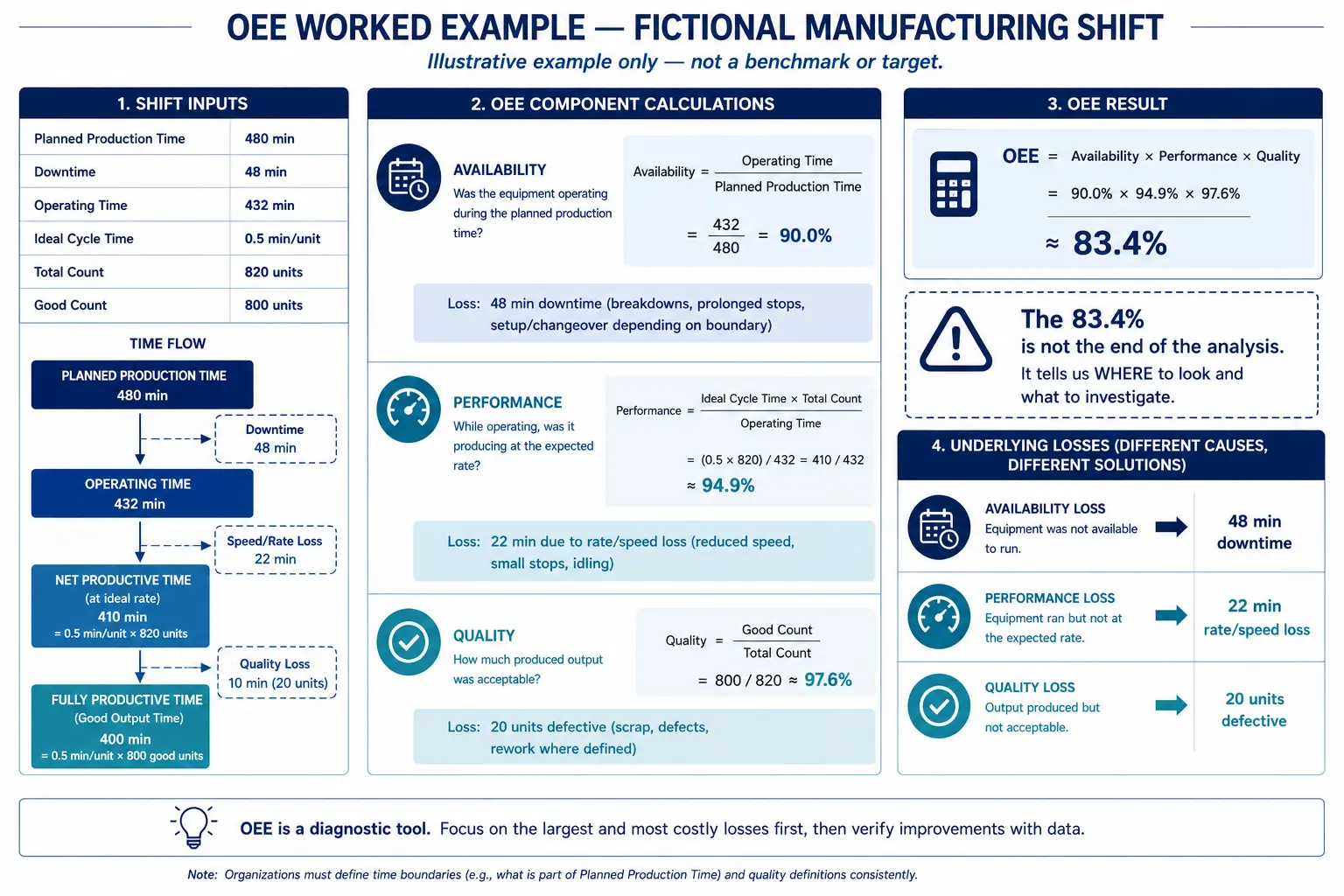

A complete OEE example

Consider a fictional manufacturing shift.

It is tempting to stop here.

That would miss the point.

The more useful questions are:

• Why were 48 production minutes unavailable?
• Why did the machine lose rate while it was operating?
• Why were 20 units unacceptable?

The OEE score tells us that productive opportunity was lost.

The components tell us where to begin investigating.

Do not obsess over the final percentage

There is a widespread tendency to ask:

“What OEE percentage should our factory achieve?”

That can become distracting.

Different manufacturing systems operate under different conditions:

• High-volume versus low-volume
• Single product versus high product mix
• Automated line versus flexible job shop
• Frequent necessary changeovers versus long production runs
• Mature equipment versus highly specialized processes

The ISO 22400 framework itself places OEE among a broader set of manufacturing KPIs rather than declaring it the sole measure of operational performance.

OEE is often more useful when comparing:

“the same process with itself over time under stable definitions”

than when using a generic number to rank unrelated manufacturing systems.

OEE can tell you where not to focus

Suppose a machine has: Availability = 78%, Performance = 96%, Quality = 99%.

A broad quality-improvement campaign is unlikely to address the dominant loss.

Availability needs investigation.

Now consider: Availability = 98%, Performance = 73%, Quality = 99%.

The machine rarely suffers major downtime.

The dominant loss occurs while it is running.

That suggests looking at:

• Reduced speed
• Small stops
• Process constraints
• Material flow
• Machine settings

This decomposition is far more useful than the overall percentage alone.

Maintenance can influence all three OEE components

Maintenance is often associated mainly with Availability.

A failed bearing stops production.

Availability falls.

But equipment condition can also affect the other components.

Consider a deteriorating mechanical system.

It might first cause:

“increasing vibration”

which leads operators to reduce speed.

Performance falls.

The same instability might later affect dimensional accuracy.

Quality falls.

Eventually the machine fails.

Availability falls.

One physical degradation mechanism has now influenced all three elements.

This is why OEE should not be treated as purely a production metric with maintenance sitting elsewhere.

Equipment health can affect:

• Uptime
• Achievable rate
• Process consistency

This creates a natural relationship between OEE and condition monitoring.

Condition monitoring helps explain some OEE losses

OEE can identify:

“Availability is deteriorating.”

Condition monitoring for rotating machinery can help investigate whether equipment degradation is contributing to that loss.

Similarly, if Performance gradually declines, engineers may examine:

• Machine condition
• Tooling
• Lubrication
• Drive load
• Process parameters

OEE provides a performance symptom.

Engineering diagnostics help identify the cause.

NIST work on manufacturing monitoring and health-management similarly connects equipment/process health with downtime reduction and production quality.

OEE and maintenance strategy should not fight each other

There is an important behavioural danger.

Suppose management focuses aggressively on maximizing Availability.

A maintenance team schedules a planned intervention.

Someone responds:

“Don't stop the machine. It will damage this week's OEE.”

The maintenance is postponed.

Short-term Availability improves.

Weeks later, the equipment suffers a major breakdown.

This is an example of improving the metric while damaging the system.

OEE should therefore support good maintenance strategy — including choosing between preventive and predictive maintenance — rather than discourage necessary planned work.

The objective is not:

“keep the machine running at every cost.”

The objective is:

“produce required good output reliably and economically.”

Manual OEE measurement can still be useful

A factory does not need a sophisticated Industry 4.0 platform before it can begin understanding production losses.

OEE information can initially come from:

• Production sheets
• Downtime logs
• Operator reports
• Quality records

This can be a practical way to establish definitions and identify major losses.

However, manual systems have limitations.

Operators may:

• Forget brief stops
• Round downtime duration
• Use different reason codes
• Estimate cycle losses
• Miss transitions

This becomes particularly important for Performance losses because many short events are difficult to capture manually.

Automated OEE can capture greater detail

Connected machines can provide information such as:

• Running/stopped state
• Cycle completion
• Production count
• Speed
• Alarms
• Machine mode

Quality systems may provide:

• Reject counts
• Inspection results

These data can feed automated OEE calculations.

ISO/TR 22400-10:2018 specifically addresses practical data acquisition for applying manufacturing KPI formulas from ISO 22400-2.

A NIST Manufacturing Extension Partnership case also describes an embedded system introduced on hydraulic punch presses specifically to measure machine availability, process performance and product quality automatically so OEE losses could be better understood.

This is where connecting manufacturing equipment through IIoT and digital twins in manufacturing become relevant — both depend on the same underlying discipline of consistently defined, well-instrumented production data.

But automation introduces an important misconception.

Automatically collected data are not automatically correct OEE data.

Digital data do not solve bad definitions

Suppose a PLC perfectly timestamps every machine stop.

That is useful.

But the system still needs to know:

• Which stops count against Availability
• Which product is being manufactured
• What ideal cycle applies
• Whether output is good or rejected
• How planned production time is defined

If those relationships are poorly configured, automation produces a wrong KPI very efficiently.

This leads to an important Industry 4.0 principle:

“Automation improves measurement resolution; it does not replace engineering definition.”

OEE dashboards should allow drill-down

A live dashboard displaying:

“OEE = 81.7%”

looks modern.

But it is useful only if engineers can ask:

“Why 81.7%?”

A good implementation should allow the team to move from:

• Overall OEE
• Availability / Performance / Quality
• Breakdowns
• Changeover
• Short stops
• Speed loss
• Specific rejects

The dashboard should therefore support investigation.

Not simply visualization.

This is part of why Industry 4.0 skills for mechanical engineers increasingly include interpreting connected production data, not only reading it.

NIST research on manufacturing KPIs describes them as tools that can quantify operational activity and direct continuous-improvement effort.

OEE should not become an operator punishment system

Another problem arises when individual operators or shifts are aggressively ranked by OEE.

People respond to incentives.

If a low score is treated only as personal failure, workers may be tempted to:

• Classify downtime differently
• Avoid recording short stops
• Reinterpret rejects
• Delay planned interventions

Then data quality deteriorates.

The metric that was supposed to make losses visible starts hiding them.

A better culture asks:

“What does the OEE loss reveal about the system?”

rather than:

“Who should we blame for the number?”

One machine's OEE may not describe system output

Consider a production line with several machines.

One work centre is the true bottleneck.

Another has spare capacity.

Trying to maximize the OEE of the non-bottleneck machine could cause it to produce unnecessary inventory without increasing final plant throughput.

Its OEE improves.

The manufacturing system does not.

This is why OEE should be interpreted with other measures such as:

• Throughput
• Work in progress
• Delivery
• Inventory
• Maintenance cost
• Energy
• Safety

NIST's research on KPI hierarchies similarly emphasizes that manufacturing KPIs are not independent and can have important relationships with one another.

My perspective from manufacturing and equipment work

In practical engineering environments, I have encountered the underlying problems that OEE attempts to organize: equipment downtime, production interruptions, changes in machine performance and output that does not always meet the required condition.

Those experiences make the separation between the three components useful.

A machine that is stopped has one kind of problem.

A machine that is running too slowly has another.

A machine that runs continuously and quickly but produces defective output has another.

Simply saying:

“production efficiency is poor”

does not distinguish them.

OEE provides a useful structure for asking the next engineering question.

That does not mean every production problem requires OEE.

It means OEE can help turn a broad performance complaint into more specific loss categories.

The OEE Improvement Loop

A useful OEE programme should continue beyond calculation.

“Improve the manufacturing system — not merely the OEE score.”

1. Define the production boundary

Specify:

• Machine or line
• Product
• Shift
• Planned production time
• Downtime rules
• Ideal cycle
• Quality definition

Without this, comparisons are unreliable.

2. Calculate Availability, Performance and Quality

Do not begin with the final OEE alone.

Keep the components visible.

3. Identify the main loss area

Is the dominant issue: downtime? reduced rate? rejected output?

4. Break the component into actual losses

Availability might contain: breakdown, setup, waiting.

Performance might contain: slow cycles, small stops.

Quality might contain: startup scrap, repeated defect type.

5. Find the physical or process cause

Now apply engineering analysis.

• Why did the bearing fail?
• Why is the cycle running slowly?
• Why is dimensional quality drifting?

6. Implement a targeted improvement

Examples could include:

• Maintenance action
• Tooling change
• Process correction
• Operator training
• Better material flow
• Revised setup method

7. Measure again using the same definitions

Changing the KPI definition after improvement destroys the comparison.

8. Check the wider manufacturing result

Finally ask:

• Did throughput improve?
• Did reliability improve?
• Did quality improve?
• Did inventory increase unnecessarily?
• Did maintenance risk increase?
• Did the change create another constraint?

This final check matters.

The goal is to improve manufacturing performance — not simply make the OEE number rise.

Common OEE mistakes

Treating OEE as one score

Always examine Availability, Performance and Quality separately.

Using inconsistent time definitions

The same rules should apply across comparable periods.

Choosing a convenient ideal cycle time

Performance depends directly on this assumption.

Ignoring short stops

Repeated micro-stoppages can create substantial losses.

Hiding planned maintenance to protect OEE

This can damage long-term reliability.

Comparing unrelated equipment

Product mix and process design matter.

Ignoring system constraints

Increasing one machine's output may not increase final throughput.

Automating a poorly defined KPI

Bad definitions remain bad after digitalization.

Collecting data without taking action

A KPI that never leads to investigation or improvement becomes reporting overhead.

What should happen after OEE identifies a loss?

OEE is a starting point.

If Availability is poor, possible next tools include:

• Downtime Pareto analysis
• Maintenance history
• Reliability analysis
• Condition monitoring
• Failure analysis

If Performance is poor:

• Cycle analysis
• Small-stop investigation
• Process observation
• Bottleneck analysis
• Equipment condition assessment

If Quality is poor:

• Defect analysis
• Process capability
• Measurement review
• Tooling or machine-condition investigation

OEE identifies the category.

Engineering analysis identifies the cause.

Key takeaway

Overall Equipment Effectiveness is simple enough to calculate on a spreadsheet.

Using it well is harder.

Availability asks whether planned production time was available.

Performance asks whether the machine produced at the expected rate while operating.

Quality asks how much output was actually acceptable.

Multiplying the three creates OEE.

But the final percentage is not the most important result.

The important result is understanding:

“where productive opportunity was lost — and then why.”

A useful OEE system should therefore move continuously from:

• Measurement
• Loss identification
• Engineering investigation
• Targeted improvement
• Measurement again

If teams become more interested in the OEE score than the manufacturing losses underneath it, the metric has stopped serving its purpose.

“Use OEE to expose the loss. Then solve the engineering problem behind the loss.”

References and further reading

• ISO 22400-1:2014 — Automation systems and integration — Key performance indicators for manufacturing operations management — Part 1. Provides the industry-neutral concepts, terminology and overall framework for manufacturing KPIs.
• ISO 22400-2:2014 — Part 2: Definitions and descriptions. The currently published edition specifying selected manufacturing KPIs through their formulas and corresponding elements. ISO currently lists a second edition at Draft International Standard stage.
• ISO/TR 22400-10:2018 — Operational sequence description of data acquisition. Addresses practical data acquisition for applying ISO 22400 manufacturing KPI formulas.
• NIST — The Costs and Benefits of Advanced Maintenance in Manufacturing. Discusses OEE in the context of Total Productive Maintenance and presents the Availability × Performance × Quality formulation.
• Kang et al., NIST — A Hierarchical Structure of Key Performance Indicators for Operation Improvement in Production Systems. Useful for understanding manufacturing KPIs as related measures rather than independent standalone scores.
• NIST MEP — Keats Hydraulic Press OEE System. A useful practical example of automated measurement of machine availability, process performance and product quality to better understand OEE losses.
